Oblique UAV Camera.

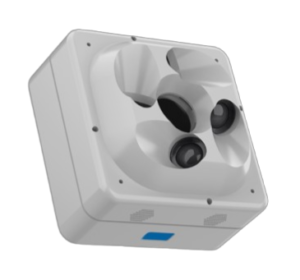

Get3D 5-Eye
Capture Reality Completely. In a Single Flight.
See Every Angle. Capture Every Detail.
Most aerial cameras capture surfaces—not complete reality. The real challenge isn’t images, it’s capturing fully usable 3D data. The Get3D 5-Eye Camera changes that. With five synchronised lenses capturing one nadir and four oblique views in a single trigger, it delivers complete structural coverage—rooftops, façades, and edges—in one flight. The result? Faster mapping, higher accuracy, and minimal data gaps. Less re-flying. Less rework. More time delivering clean, ready-to-use 3D models.
Key Features
Approx.
px
Approx.
Capture Capability

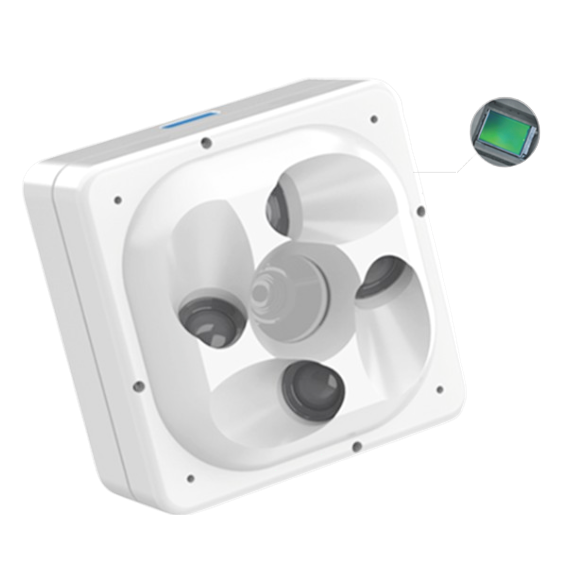

5-Angle Capture System
Capture 5 images in a single trigger—1 Nadir and 4 Oblique views—ensuring complete coverage of rooftops and edges. This reduces the need for multiple flight passes and delivers complete coverage in a single flight compared to single-camera setups.
The result is complete data with fewer missions.

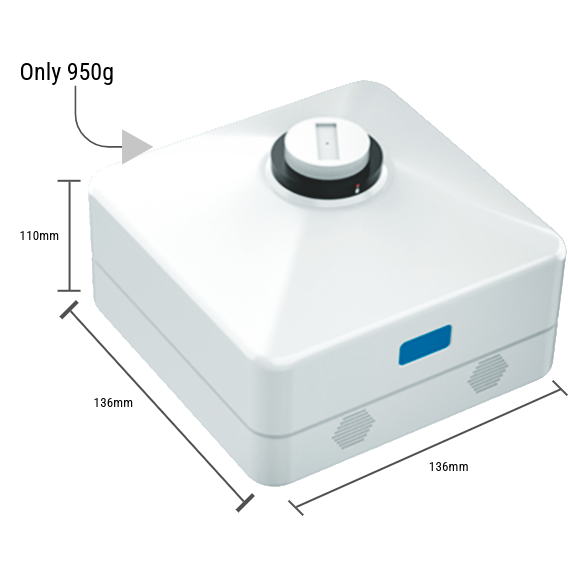

Lightweight Design
With a total payload of ~950 grams, the system allows longer flight durations and greater area coverage per battery compared to heavier payloads. This increases area coverage per mission and reduces the number of battery swaps needed on-site.
CNC-machined aerospace aluminium alloy body minimises the weight of the camera. More coverage means faster project completion.

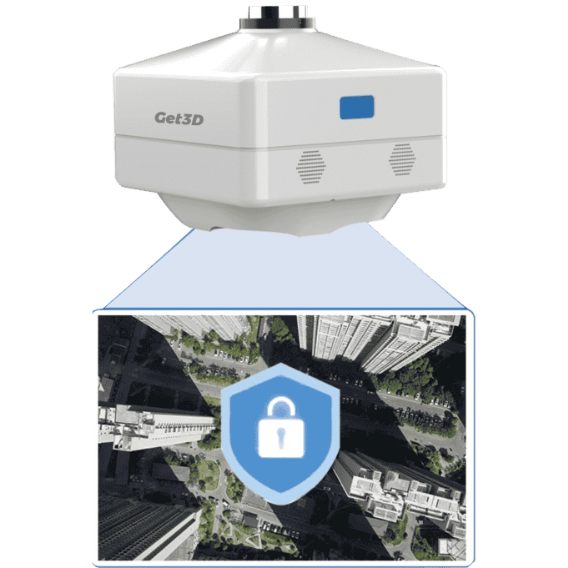

Stable Secure Imaging
A global shutter captures distortion-free images even during motion, eliminating blur and rolling shutter effects. Built with an aerospace-grade body, the system maintains stability in real conditions.
Integrated encryption ensures captured data stays protected from the moment of acquisition.
Know more about Get3D 5-Eye Lens Camera
| Specification | Max | Pro | D2M |
|---|---|---|---|
| Effective Pixel | 61 MP, total 305 MP | 45 MP, total 225 MP | 26 MP, total 130 MP |
| Image Resolution | 9564*6376 | 8184*5640 | 6240*4168 |
| Pixel Size | 3.76μm | 4.4μm | 3.76μm |
| Sensor Size | Full Frame (36mm*24mm) | Full Frame (36mm*24mm) | Full Frame (23.5*15.6mm) |
| Oblique Angle | 45° | ||
| Lens Focal Length | Nadir 35mm/Oblique 50mm | Nadir 25mm/Oblique 35mm | |
| Total Weight | ~950g | ~630g | |
| Size | 136*136*110mm | 105*105*87mm | |
| Storage Capacity | 1280 GB | ||
Compatible UAVs
Applications
Construction
Infrastructure
Mining
Learn More
GIS Mapping
Topographic Surveys
Heritage
Urban 3D City Modeling
Smart City Digital Twins
In today’s fast-evolving world, decisions demand more than data—they need location intelligence. Geospatial intelligence solutions bring clarity, speed, and precision across every application. Unlock the true value of your data and turn insights into impact.
Start Your Multispectral Workflow Today
Turn one flight into full, ready-to-use 3D models without missing details.
