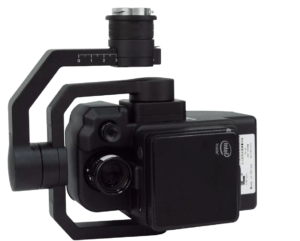

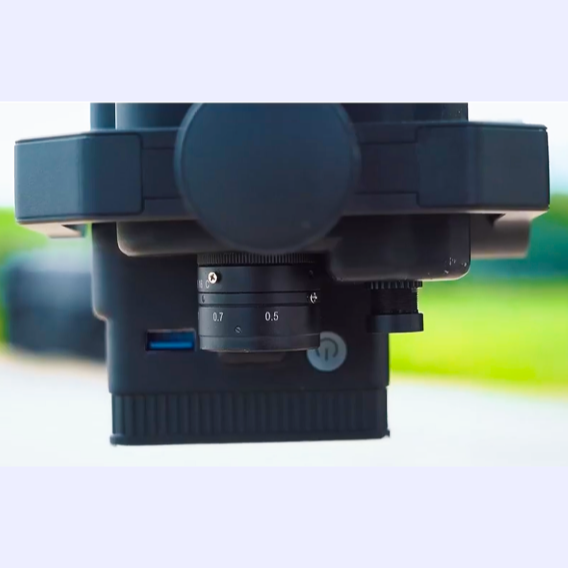

FS-50 Series Multispectral Camera
Capture the invisible. Win the decision.
See deeper. Understand faster. Act with certainty.
The real problem isn’t data availability. It’s the lack of clarity when decisions need to be made. CHNSpec FS-50 series multispectral camera transforms complex spectral data into real-time intelligence, giving you the confidence to act in the field, not after it. With scalable spectral capture from 30 to 180 channels, it adapts to your mission without changing your workflow. Every capture delivers sharper insight, faster interpretation, and stronger outcomes across agriculture, defence, and environmental operations.
Key Features
2K (1920 pixels)
Spatial Resolution
30 to 180 channels
Spectral Channels
2.8 cm GSD @ 120m
Data Precision
54 m swath width
Coverage Speed
54m@h120m
Covering Width
Fly Longer. Do More.
Designed for efficiency with just 45W power consumption and a lightweight 840 g build, enabling stable and extended flight operations. Capture wider areas with up to 54 m swath width at 120 m altitude, reducing the number of flights required.
Now get more coverage per mission with fewer interruptions and higher overall productivity.

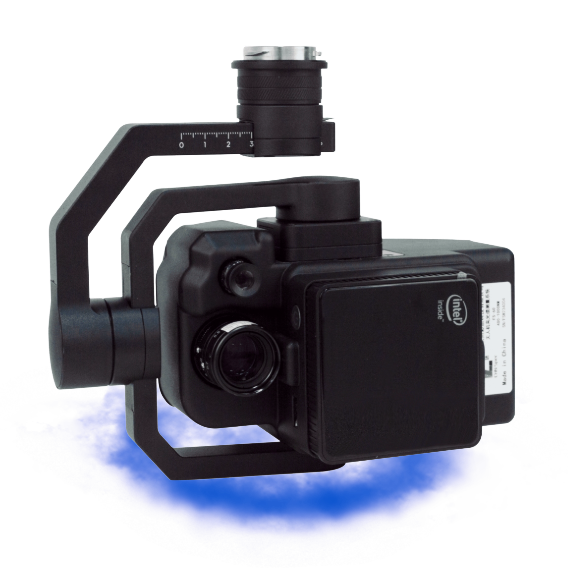

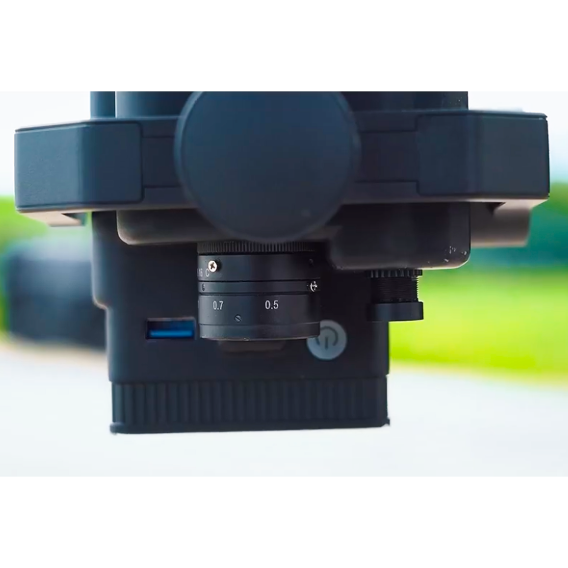

Capture Precision Without Risk
FS-50 Multispectral Camera is built with 2K resolution, 2.8 cm ground resolution, and global shutter technology for sharp, distortion-free imaging. It maintains clarity even during high-speed flights and at higher altitudes.
Reliable visual data ensures accurate interpretation across every mission.

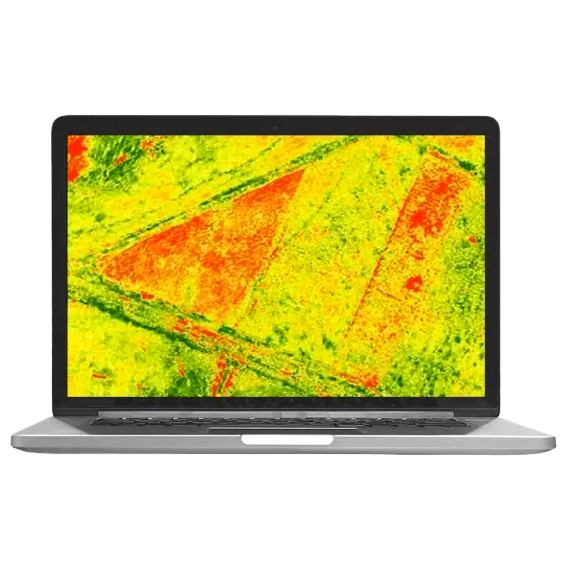

Advanced Spectral Intelligence
Equipped with 30 to 180 spectral channels and 12-bit high-precision sampling, FS-50 delivers deeper insights beyond standard imaging. Now detect subtle variations in crops, water quality, and surface conditions that remain invisible to conventional cameras.
Enhanced data quality leads to clearer analysis and stronger decision outcomes.
Know more about FS-50 Series
| Specification | FS-50/30 | FS-50/60 | FS-50/90 | FS-50/120 | FS-50/150 | FS-50/180 |
|---|---|---|---|---|---|---|
| Number of spectral channels | 30 | 60 | 90 | 120 | 150 | 180 |
| Spectral channel wavelength | 400-1000nm output one wavelength every 20nm | 400-1000nm output one wavelength every 10nm | 400-1000nm output one wavelength every 6.66nm | 400-1000nm output one wavelength per 5nm | 400-1000nm output one wavelength per 4nm | 400-1000nm output one wavelength per 3.33nm |
| Spectrum resolution ratio / Half-wave width | 3.5nm | 3.5nm | 3.5nm | 2.5nm | 2.5nm | 2.5nm |
| Space resolution | 1920 | |||||
| Ground resolution | 2.8cm@h120m | |||||
| Covering width | 54m@h120m | |||||
| Visual field | 25.36° | |||||
| Main engine weight | ≤840g | |||||
| Main engine size | ≤155*95*119mm | |||||
| Optical window | High transmittance optical glass window | |||||
Applications
Precision Agriculture
Crop Monitoring
Forestry
Learn More
Public Safety & Defence
Disaster Management

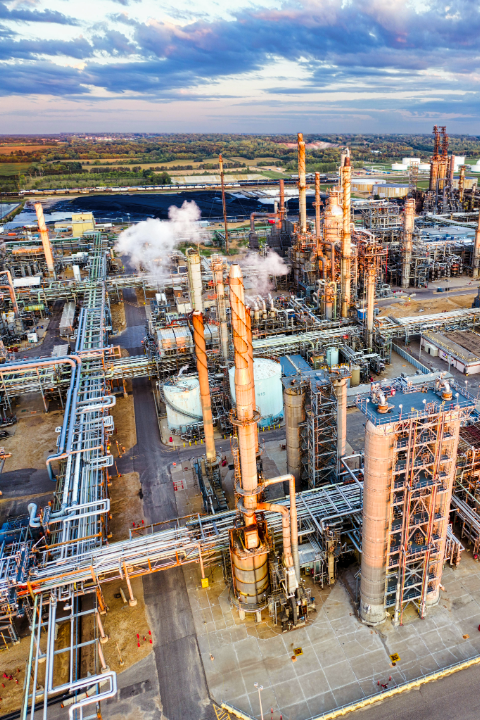

Industrial Inspection
