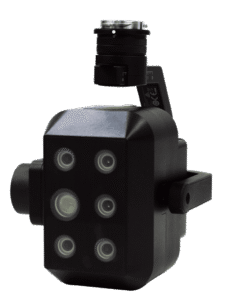

FS-620 Multispectral Camera
Capture. Process. Decide — all in one flight.
Built for Decisions, Not Just Data
CHNSpec FS-620 camera turns every flight into instant clarity. Capture multispectral, RGB, and thermal data—and see results as you fly. No delays. No complex workflows. Just real-time insights that let you detect, decide, and act in the moment. Built for seamless integration and precision capture, it removes friction and gives you what matters most—speed in decision-making.
Key Features
400nm~1000nm
Spectral Range
555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB；LWIR：8μm~14μm
Spectral Channels
Multispectral: 9.6cm@h120m； RGB:2.86cm@h120m
Ground Resolution
Multispectra:1.3Mpx；RGB:8.3Mpx; LWIR:0.3Mpx
Pixels
Multispectral: 54.2°×44.5°, RGB:49.1°×28.8°
Field of View

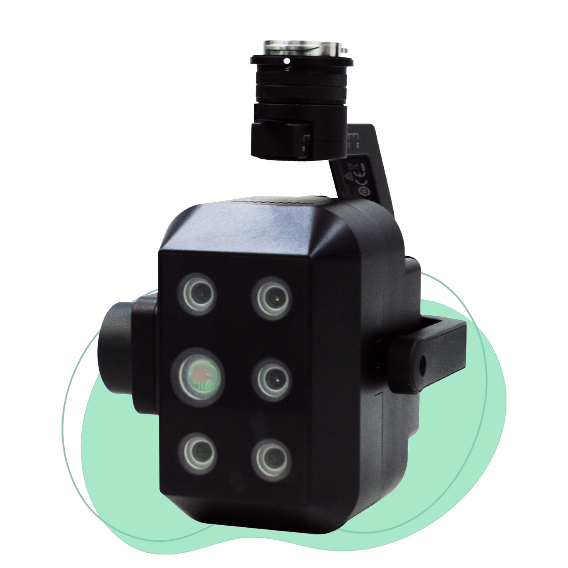

Perfect Data, Even in Motion
Capture perfectly aligned data across all channels with ultra-fast synchronisation. Even in motion, every layer stays sharp, accurate, and ready for analysis. FS-620 ensures consistent data quality across multispectral, RGB, and thermal streams, eliminating misalignment issues that slow down workflows.
Get reliable datasets from the first pass—reducing rework, saving time, and improving confidence in every output.

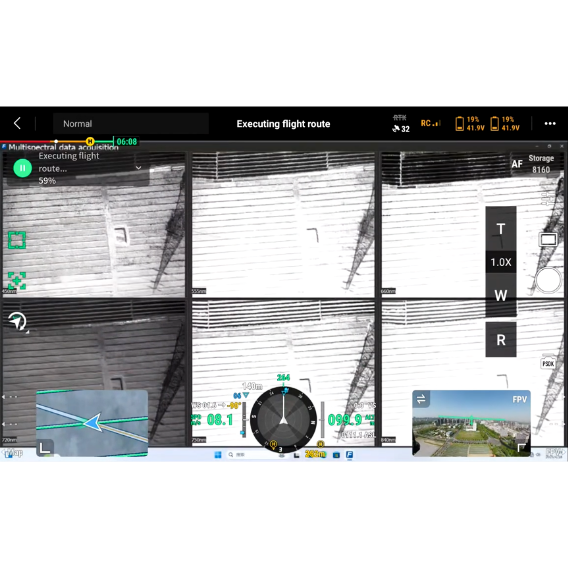

Instant Insights, Not Delayed Reports
See real reflectivity and insights as you fly. No waiting. No post-processing delays—just immediate clarity in the moment. FS-620 processes multispectral, RGB, and thermal data in real time, so you don’t have to return and analyse later.
Detect changes instantly, respond faster, and make decisions while the situation is still evolving. Every flight becomes a live source of actionable intelligence.
More Than Imaging. Real Temperature Intelligence
Add a deeper layer of insight with direct temperature data. FS-620 combines thermal, multispectral, and RGB imaging to reveal patterns that standard visuals cannot capture. Identify heat variations, detect anomalies early, and uncover hidden issues across large areas.
Move beyond observation to true understanding—where every anomaly becomes a clear signal for action.
Know more about FS-620 Multispectral Camera
| Specification |
FS-620 |
FS-600 |
FS-500 |
|---|---|---|---|
| Assembly method | 4 channels multi-spectral + 1 RGB + 1 channel thermal inf | 6-channel multis | 4 channels multispectral |
| Targets | Multispectral: 1/2″; RGB:1/3″ | 1/2″ | Multispectral: 1/2″; RGB:1/3″ |
| Effective pixels | Multispectra:1.3Mpx; RGB:8.3Mpx; LWIR:0.3Mpx | 1.3Mpx | Multispectral: 1.3Mpx; RGB:8.3Mpx |
| Shutter type | Multispectral:Global; RGB:Rolling | Global | Multispectral:Global; RGB:Rolling |
| Quantization bit number | Multispectral:12bit; RGB: 8bit | 12bit | Multispectral:12bit; RGB: 8bit |
| Field of view | Multispectral:54.2°×44.5°; RGB:49.1°×28.8° | 54.2°×44.5° | Multispectral:54.2°×44.5°; RGB:49.1°×28.8° |
| Ground Resolution | Multispectral:9.6cm@h120m; RGB:2.86cm@h120m | 9.6cm@h120m | Multispectral:9.6cm@h120m; RGB:2.86cm@h120m |
| Coverage Width | Multispectral:123m×98m@h120m; RGB:109m×61m@h120m | 123m×98m@h120m | Multispectral:123m×98m@h120m; RGB:109m×61m@h120m |
Applications

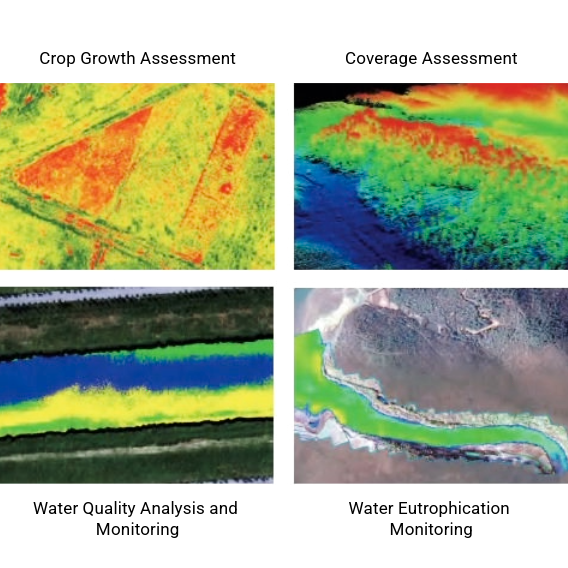

Precision Agriculture
Forestry
Learn More
Ecosystem Monitoring

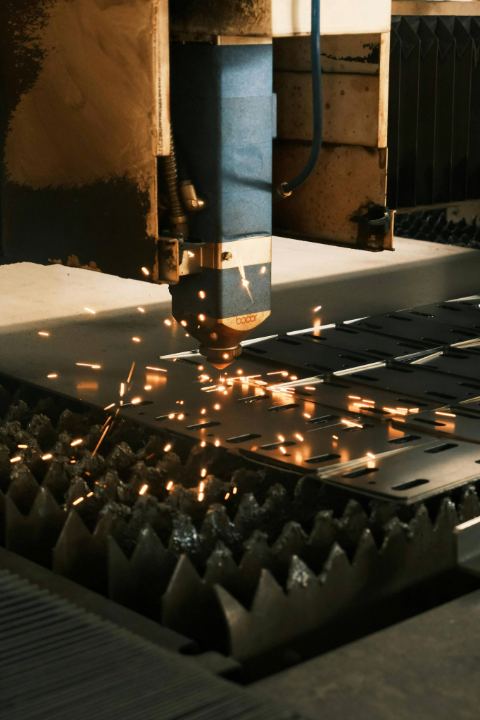

Industrial Machine Vision
In today’s fast-evolving world, decisions demand more than data—they need location intelligence. Geospatial intelligence solutions bring clarity, speed, and precision across every application. Unlock the true value of your data and turn insights into impact.
Step Into Real-Time Intelligence with FS-620 Camera
Partner with experts to deploy the right multispectral camera solution built for precision, speed, and real-world performance.
